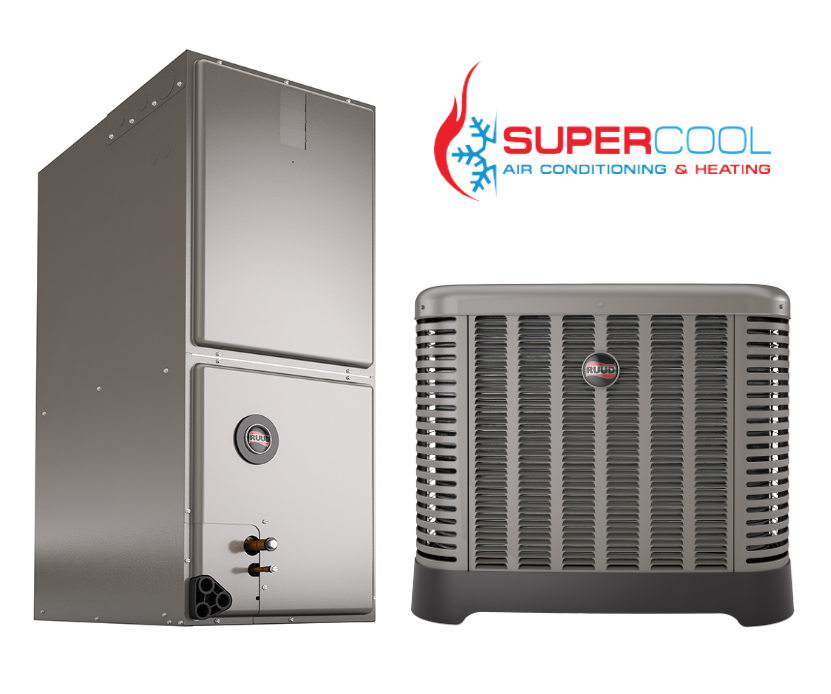

RUUD 3 STAGE HEAT 2 COOL
RP14 Features and Benefits
Two-Stage Scroll Compressor: Features two speeds (high and low) of cooling and heating, providing more precise temperature control, lower humidity and greater efficiency when compared to single stage compressors
Inverted Reversing Valve: Allows for faster heat transfer with gravity assist shifting and reduced joint stress for increased reliability
PlusOne® Expanded Value Space: 3 in. – 4 in. – 5 in. service valve space—provides a minimum working area of 27-square inches for easier access
PlusOne® Triple Service Access: 15 in. wide, industry leading corner service access, two fastener, removeable corner and individual louver panels—makes repairs easier and faster
RH2TY Features and Benefits
RH2TY features a Constant Torque motor (ECM) which provides enhanced SEER2 performance with most Ruud outdoor units
Versatile 4-way convertible design for upflow, downflow, horizontal left and horizontal right applications
Factory-installed indoor coil
Sturdy cabinet construction with 1.0 inch [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics
Field-installed auxiliary electric heater kits provide exact heat for indoor comfort. Kits include circuit breakers which meet U.L. and cUL requirements for service disconnect
11/2 ton [5.3 kW] through 5 ton [17.6 kW] models are between 421/2 to 57 inches [1080 to 1448 mm] tall and 22 inches [559 mm] deep
All models meet or exceed 330 to 400 CFM [156 to 189 L/s] per ton at .3 inches [.7 kPa] of external static pressure
Enhanced airflow up to .7" external static pressure
Evaporator is constructed of aluminum fins bonded to internally grooved aluminum tubing
Suitable for application in mobile homes
Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE Standard 193
